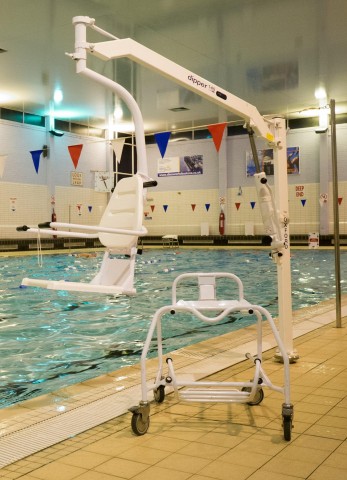

Dipper Pool Hoist
Robust pool hoist with spreader bar or transporter chair attachments, ideal for use in therapy pools, swimming pools and quayside locations.
Product Code: H2140/2
UK Coverage
Fast delivery
Longer warranties
Low maintenance products
Long usable lifetime
Live chat support
Key features
The Dipper is for use at swimming pools, therapy pools and quayside locations with a specification that is highly functional and easy to use.
Its design assures full integration with the pool or quayside environment. The Dipper is a proven, reliable and safe method of gaining access to the water and has a weight capacity of 140kg (22st).
The Dipper hoist can be used either with a spreader bar and sling arrangement or the Ranger transporter chair.
Specification
|
Dipper Specification |
|
|
Safe Working Load |
140 kg (22 st) |
|
Boom Length |
1498 mm |
|
Height (socket A & B, boom lowered) |
1422 mm |
|
Height (socket A & B, boom full elevation) |
2108 mm |
|
Base of Seat Above Floor Level (socket A & B) |
889 mmm |
|
Base of Seat Below Floor Level (socket A & B) |
914 mm |
|
Height (socket C, boom lowered) |
1572 mm |
|
Height (socket C, boom full elevation) |
2258 mm |
|
Base of Seat Above Floor Level (socket C) |
1039 mm |
|
Base of Seat Below Floor Level (socket C) |
764 mm |
|
Weight - Mast Assembly |
15.4 kg |
|
Weight - Boom Assembly |
10.4 kg |
|
Weight - Chair Support Tube |
3.6 kg |
|
Weight - Ranger Seat |
4.5 kg |
|
Weight - Ranger Chassis |
8.7 kg |
|
Weight - Spreader Specification Ranger Seat Bar Assembly |
1.7 kg |
|
Ranger Seat |
|
|
Specification Ranger Seat Bar Assembly |
1.7 kg |
|
Maximum Height to Base of Seat |
740 mm |
|
Minimum Height to Base of Seat |
740 mm |
|
Maximum Seat Travel |
485 mm |
|
Maximum Seat Width |
360 mm |
|
Maximum Width Between Arms |
430 mm |
|
Maximum Seat Depth |
410 mm |
|
Centre of Seat to Centre of Mast |
430 mm |
|
Maximum Seat Turning Radius |
840 mm |
|
Maximum Seat Turning Radius (with end fitting arm option) |
890 mm |
|
Minimum Clearance from Mast (to allow for seat rotation) |
1000 mm |
|
Total Weight - Ranger Chair |
13.3 kg |
|
Specification Ranger Transporter |
|
|
Maximum Width |
610 mm |
|
Maximum Depth |
560 mm |
|
Maximum Height |
610 mm |
|
Seat Height |
510 mm |
|
Seat to Footrest |
430 mm - 480 mm |
