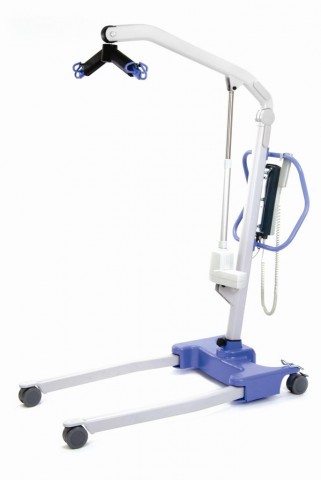

Pro Presence Patient Mobile Hoist
Pro Presence Mobile Hoist, Electric, 227kg SWL, SMART Monitor, 6pt Loop Fixing Spreader Bar, Electric Leg Actuation, c/w Battery and Charger.
Product Code: H2031
Key features
The Presence comes with 2 years warranty as standard.
- Large lift capacity: 227Kg / 35st safe working load
- Outstanding lifting range: 1910mm
- Powered leg positioning
- Powered 4 point cradle option (not shown)
- NEW - Digital weigh scale option (not shown)
Outstanding performance and lifting range.
The Presence patient lift is competent enough to handle almost any patient-handling task. It is an all round performer that gives you more than you expect!
Whether from the floor or onto a high surface the Presence has an astonishing range off movement. The minimum height with the six point spreader bar is just 440mm, which ensures excellent off the floor transfers. Conversely, if you wish to access high beds or nursing surfaces the Presence will lift up to 1910mm.
This is especially useful where you have variable height beds, special lift mattresses and other high surfaces. This type of flexibility is increasingly important in the care environment. It is the difference between effective safe transfers and unnecessary risk for both the carer and patient.
Sculptured base design allows carer to get close to the lift, which promotes ease of use. The additional space promotes better ergonomics for the carer, as it is possible to interact more closely with the patient. The Presence has two powerful electric motors which open and close the legs automatically. Additionally, the Presence’s unique ‘swan-neck’ leg design also allows the lift to get close to the widest of obstacles. This is especially useful when encountering large chairs, bulky commodes and wheelchairs.
Specification
Specification | Imperial | Metric |
Safe Working Load | 500 lbs | 227 kgs |
Maximum Overall Length | 57.5 inches | 1460 mm |
Minimum Overall Length | 55.1 Inches | 1400 mm |
Maximum Overall Height | 81.3 inches | 2065 mm |
Minimum Overall Height | 57.5 inches | 1460 mm |
Spreader Bar - Maximum Height | 75.2 inches | 1910 mm |
Spreader Bar - Minimum Height | 16.9 inches | 430 mm |
Height at Maximum Reach | 51.5 inches | 1310 mm |
Reach at Maximum Height | 25.6 inches | 650 mm |
Reach at Minimum Height | 15.7 inches | 400 mm |
Maximum Reach (Centre of spreader bar to front of the mast) | 36.6 inches | 930 mm |
Turning Radius | 64.2 inches | 1630 mm |
Legs Open - External Width | 45.2 inches | 1150 mm |
Legs Open - Internal Width | 40.1 inches | 1020 mm |
Legs Closed - External Width | 26.4 inches | 670 mm |
Legs Closed - Internal Width | 21.6 inches | 550 mm |
Overall Height of Legs | 4.7 inches | 120 mm |
Ground Clearance | 1.4 inches | 35 mm |
Front Twin Castors | 4.0 inches | 100mm |
Rear Braked Castors | 4.0 inches | 100mm |
4-point Positioning Cradle - Maximum Height | 61.0 inches | 1550 mm |
4-point Positioning Cradle - Minimum Height (usable) | 15.4 inches | 390 mm |
