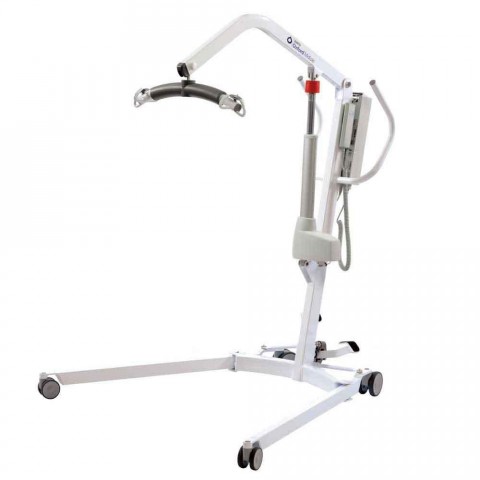

Classic Midi 180 Hoist

The ever popular Midi offers both patient and carer greater flexibility, now with 180kg capacity.

Product code: H2042/3

Specification
UK Coverage
Fast delivery
Longer warranties
Low maintenance products
Long usable lifetime
Live chat support

Key features

  • 180kg Safe Working Load
  • SMART monitor
  • Enables safe transfers
  • Available in Electric or Hydraulic versions
  • Range of spreader bars - fully interchangeable, and in a choice of three sizes to suit a variety of patient sizes
  • Foot-pedal leg adjustment - designed for ergonomic operation

The ever popular Midi offers both patient and carer greater flexibility, now with 180kg capacity

The all-new Classic Hoist Range - attention to detail, rigorous testing, functional ergonomics.

The MIDI 180 is the most popular mobile hoist in our community range and now comes loaded with many new and improved features

Available in hydraulic and electric versions



Specification

User weight capacity: 180kg (28st)

Weight: 32kg

Max. overall length: 1225mm (48¼")
Min. overall length: 1225mm (48¼")
Max. overall height: 1840mm (72½")
Min. overall height: 1240mm (48¾")
Max. spreader bar height: 1660mm (65¼")
Min. spreader bar height: 525mm (20½")
Spreader bar height at max. reach: 1060mm (41¾")
Spreader bar reach at max. height: 420mm (16½")
Spreader bar reach at min. height: 440mm (17¼")
Max. reach: 655mm (25¾")
Turning radius: 1235mm (48½")
External width, legs open: 1170mm (46")
Internal width, legs open: 1070mm (42")
External width, legs closed: 600mm (23½")
Internal width, legs closed: 540mm (21¾")
Overall leg height: 100mm (4")
Ground clearance: 25mm (1")
Front twin castors: 75mm (3")
Rear braked castors: 100mm (4")
Product weight: 32kg (70½lb)
Battery: 2 x 12V, rechargable, sealed acid type battery
Battery Capacity: 3.2 amp/h
Battery Weight: 3kg
