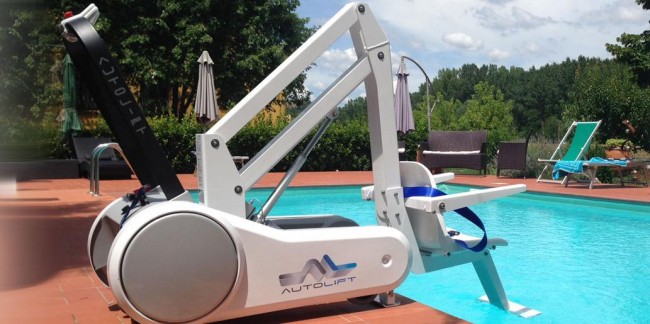

I-Swim Pool Hoist

The I-Swim Pool Hoist provides a new dimension in pool access.

Designed as a mobile product, the I-Swim removes the requirement for a permanently mounted pool hoist, freeing up poolside space and giving more flexibility in where users access a pool.

Specification
UK Coverage
Fast delivery
Longer warranties
Low maintenance products
Long usable lifetime
Live chat support

Key features

  • 136kg SWL
  • Onboard batteries
  • Convenient operator control
  • Easy to manoeuvre
  • Comfortable seat

The I-Swim is easy to use with a convenient push handle which allows the hoist to be positioned at the pool edge. A patented anti-tip stabilising system engages to keep the hoist steady as it lowers the user into the pool with a push of a button.

The I-Swim seat is a comfortable plastic tub with integrated drain holes and an adjustable footrest. The seat is equipped with a simple safety belt, and lift-up armrests to allow transfers.

The I-Swim is powered by onboard batteries, providing enough energy for around 50 pool transfers, and is charged using a mains-connected transformer. The attendant controller, mounted on the push handle is equipped with an LCD display showing battery capacity.

Specification

I-Swim Technical Specification
Materials Aluminium & Stainless Steel
Wheels 4no 100mm wheels, 2 with brake
Lift Parallelogram
Coating Polyester powder coated
Safety Anti-tip and Stabilising System
SWL 136kg
Unit weight 140kg
Voltage 24v
Batteries 2 x Batteries, 18A
Cycles c50 lifts per charge
Instruments

Battery Load Indicator

Up/Down Operation buttons

Emergency Stop Button

Seat Height
Max depth



  • Parked Length: 1245mm
  • Overall Width: 640mm
  • Floor clearance: 29mm
