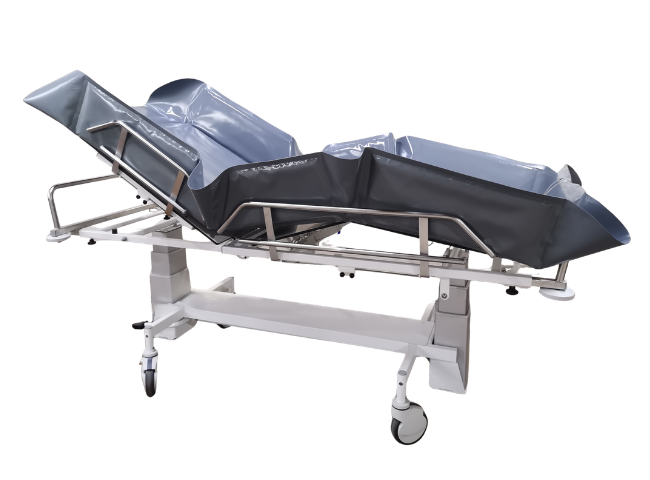

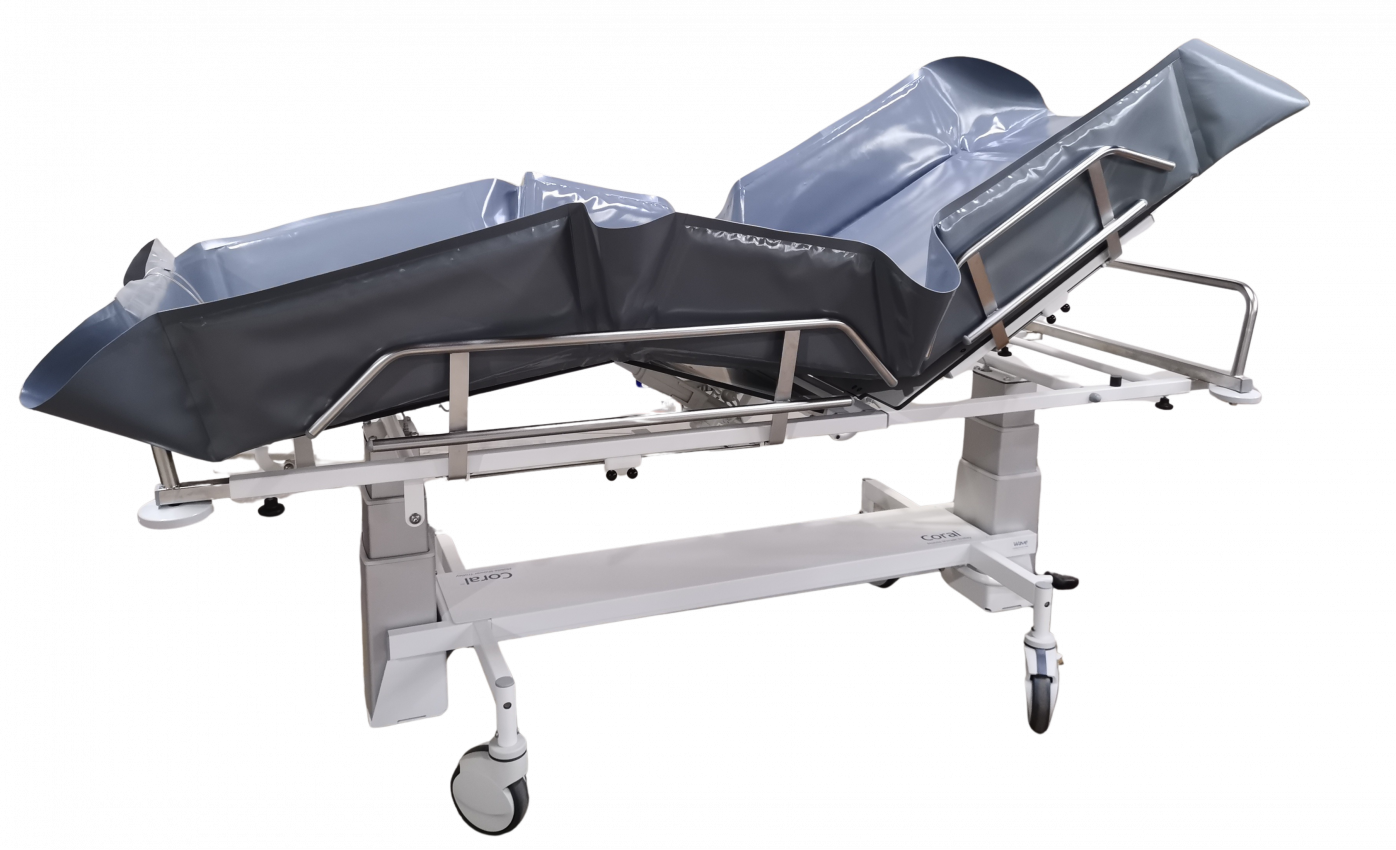

Wave 80
The Wave 80 Bariatric Shower Trolley is built for safe, efficient bathing of plus-sized patients, combining electric profiling, ergonomic height adjustment and a durable, corrosion-resistant frame.
Designed to reduce caregiver strain while improving patient comfort and dignity, it’s a reliable solution for hospitals, care homes and specialist bariatric settings.
The Wave 80 is a premium solution for bathing in multi-user environments, yet aesthetically designed to look good in the home too.
If you would like to explore our Bariatric Hub for more information, including details on our range of plus-sized care equipment, please click here.
Contact us today for a quotation or demonstration.
Expected delivery time is 4-5 weeks.
Order code: N8791
Key features
- Unique four section profiling platform
- Height adjustable 510mm-910mm
- Extendable platform
- Electric tilt and profiling
- Central braking system
Flexible Positioning for Better Patient Comfort
The four-section profiling platform allows precise positioning during bathing, supporting the head, back, and legs to improve comfort and reduce strain.
Use it as a standard flat trolley or adjust positioning to meet individual clinical needs, ideal for complex or reduced-mobility users.
Built for Bariatric Care Environments
Constructed from durable steel and treated with a multi-stage anti-corrosion process, the Wave 80 is designed to withstand intensive daily use in hospitals, care homes, and specialist units.
Its reinforced frame and wide platform provide stable, secure support for higher-weight users.
Safe Handling, Less Strain on Staff
Electric height adjustment (510–910mm) allows carers to work at safer, more ergonomic heights, reducing the risk of manual handling injuries.
The central braking system ensures the trolley remains stable during transfers and bathing, giving caregivers full control at all times.
Smooth Mobility, Secure Positioning
Large 150mm castors enable easy movement across different floor surfaces, even in tight spaces. Once in position, the central locking system keeps the trolley firmly in place.
Designed for Hygiene and Longevity
Stainless steel side rails are corrosion-resistant and easy to clean, supporting infection control protocols and long-term reliability in wet environments.
High Weight Capacity You Can Trust
With a safe working load of 300kg, the Wave 80 provides dependable support for a wide range of bariatric users, without compromising on performance or safety.
Specification
|
Platform Size |
2030 (to 2130) x 960 mm |
|
Safe working load: |
300kg |
|
Adjustable height |
510 - 910mm |
|
Height adjustment control: |
Battery |
|
Total weight of trolley: |
105kg |
|
Castor diameter: |
150mm |
|
Castor locking system: |
Central |
|
Folding side rails: |
Standard |
|
Backrest adjustment |
52 degrees |
|
Trendelenburg tilt: |
2 degrees |
|
Anti Trendelenburg tilt: |
10 degrees |
|
Drain hose length: |
700mm to 2000mm |
|
Rail Height: |
205mm |
