New Product Announcement- ZUM & ART

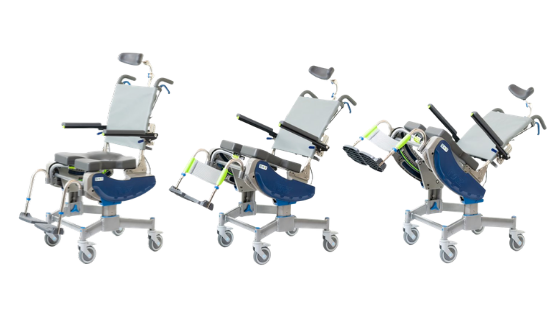

RAZ ART
Attendant Rotational Tilt

The RAZ-ART mobile shower commode chair utilizes a patented, dual arc, orbital tilt system that allows for the smallest footprint and lowest tilt effort of any chair on the market. Unique frame design provides two ranges of tool-less height adjustment and a 40° tilt range.

• Patented Tilt Geometry. Dual arc, orbital tilt, minimizes centre-of-mass movement throughout range. Extremely low tilt effort. 40° tilt range
• Patent-pending Tilt Lock, prevents cable looping
• Smallest footprint, for unparallel manoeuvrability
• Lightweight, invertible, aluminium frame provides two tool-less height ranges totalling 180mm
• Tension-adjustable back upholstery
• Flip-up arms with optional locks
• Compatible with all standard-width RAZ seats, which include the exclusive IPAS*
• Adjustable back angle
• Backrest with 75mm forward and backward adjustment to vary seat depth
• Built-in tilt angle indicator
• Dual locking (swivel and roll) 125mm castors

*Ischial Pelvic Alignment System (IPAS) allows 50mm forward/backward, 25mm lateral or 4.5° rotational of seat depth adjustment

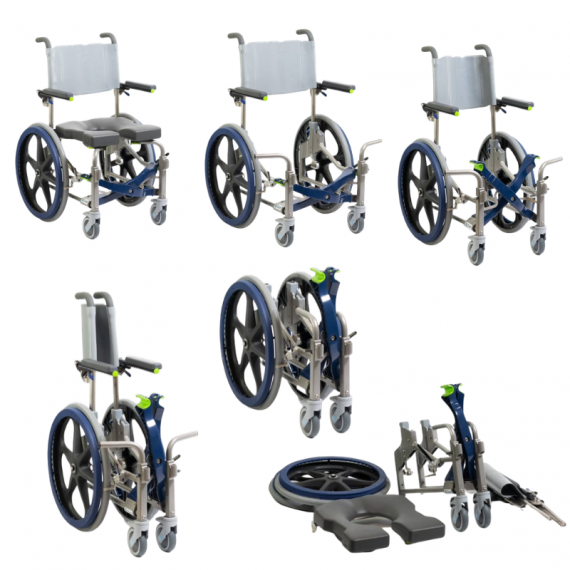

RAZ ZUM

Attendant or Self Propel Folding Mobile Shower Commode

The ZUM represents the ultimate in folding mobile shower commode chairs. It’s unique cross-brace provides for a very rigid chair that can be positioned further rearward over a toilet bowl for better aperture alignment. The RAZ-ZUM SP includes forward and backward rear wheel centre of mass adjustment, for increased manoeuvrability. The ZUM has a lightweight, aluminium frame and a removable back assembly for ease of transport.

• Unique folding Frame: Low-profile cross brace is contoured to fit around toilet bowl, allowing for better rearward positioning of seat aperture over toilet bowl
• Compatible with all standard-width RAZ seats, which include the exclusive IPAS*
• Lightweight aluminium frame- facilitates transportability
• Removable back assembly to facilitate transportation
• 430mm back height with moulded, vinyl backrest
• Flip-up arms with optional locks
• RAZ-ZSP (Self Propel): 560mm or 610mm wheels with ergonomic hand rims. 75mm of forward and backward rear wheel adjustment
• Dual locking (swivel and roll) 125mm castors

*Ischial Pelvic Alignment System (IPAS) allows 50mm of seat depth adjustment
