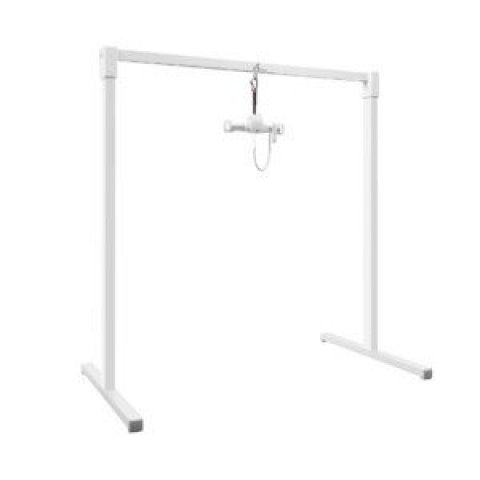

GoLift Gantry
The free-standing gantry is a load bearing portable track set up that can be moved around from room to room as required. The free-standing gantry is designed to be used with either the GoLift 400 or the GoLift Portable 450. The gantry comes as five separate pieces that require three different Allen keys in order to set up.
Castors available for relocation of gantry.
Our GoLift Gantry and GoLift Portable 450 Ceiling Hoist will soon be available on our NHS Supply Chain and can be ordered direct with us.
Key features
- Maximum Capacity: 205kg
- Set up time: 5 minutes
- Compatible with any GoLift trolley
- 4-point contact design for auto leveling on uneven flooring
- Handset charging compatible, optional wall mounted dock charging station separately available

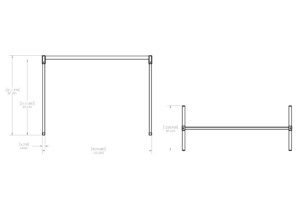

Specification
Length
(custom length available upon request)
3050mm TRK-PORT-120-ASSY
3400mm TRK-PORT-135-ASSY
3800mm TRK-PORT-149-ASSY
NOTE: Must follow maximum span chart:
3400mm for 205kg
3800mm for 180kg
WARNING: the gantry must be used on level ground (do not use at an angle). The lift must only be operated while the patient is on the inside of the outer frame of the stand on wither side.
