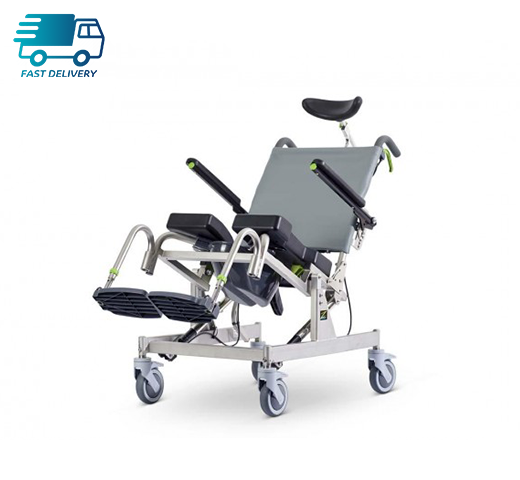

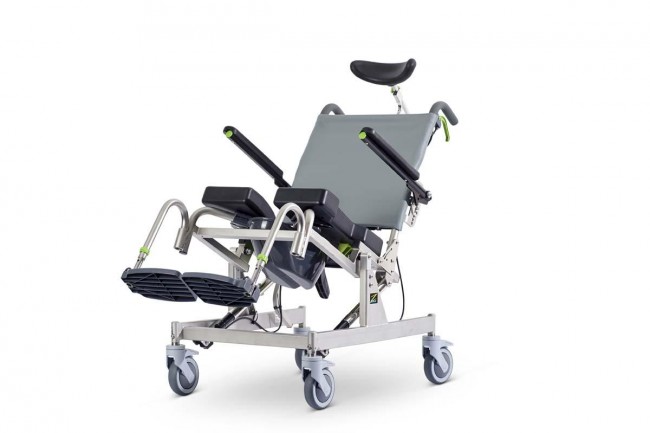

RAZ AT Shower Chair
The impressive RAZ Attendant Tilt shower chair has multiple features, adjustments and accessories mean this shower chair will cover an extensive range of needs without having to find an alternative equipment solution at a later stage.
The RAZ Attendant Tilt (AT) Shower Chair - our most popular product which offers the most configurable postural management and user comfort. Do you have significant postural or pressure management requirements? If so, the AT is likely the best solution for you!
Order Code - N0001
UK Coverage
Fast delivery
Longer warranties
Low maintenance products
Long usable lifetime
Live chat support
Key features
- IPAS Seat System - adjust the seat depth to achieve optimum aperture positioning
- Stainless steel chassis for durability
- Height adjustable seat
- Tension adjustable backrest - supports posture and provides lateral support
- Tilt-in-Space to 40° - excellent for pressure management and comfort
- Flip-up armrests for excellent access
- Forward tilting position (optional) to assist with transfers
- Several seat width options now available
The RAZ Attendant Tilt (AT) Shower Chair - our most popular tilt in space commode shower chair product which offers the most configurable postural management and user comfort.
Do you have significant postural or pressure management requirements? Do you have needs which will change over time and want to cover any eventuality?
If so, the AT is likely the best solution for you!
The AT is a multi-adjustable chair with a range of seat heights, seat depths, armrest heights and backrest angle adjustments as standard which allows movement within the frame to best suit the patient and the environment. The use of IPAS (Ischial pelvic alignment system), allows the aperture to be aligned with a user's pelvis and the contoured soft foam goes further in reducing pressure.
Seat Width Options: The standard width of the RAZ AT is 450mm (18”), but new for 2021 is a range of other widths available, all with the same 185kg / 29 stone weight capacity. By request you can now select from 400mm (16”), 500mm (20”), 590mm (22”) and 610mm (24”) in addition to the standard size.
Specification
| Safe working load | 185kg |
| Overall Width | 570mm (450mm seat width model) |
|
Seat Height |
530/560/580/610/640mm |
| Seat Depth (front of back post to front of seat) | 410mm / 480mm |
| Seat Width | 450mm standard (plus 400mm, 500mm, 550mm and 610mm by request) |
| Seat adjustment | Up to 50mm back/forwards. 20mm laterally |
| Back height | 430mm (option) 500mm standard |
| Width between armrests pads | 470mm |
| Overall depth with footplates, upright | 980mm |
| Overall depth with footplates, in tilt | 1300mm |
| Tilt in space range | 0-40° |
| Forward tilt | 5-10° |
|
Toilet bowl clearance |
Without pan brackets: 450 / 470 / 500 / 530 / 550mm With pan brackets: 420 / 440 / 470 / 500 / 520mm |
| Toilet bowl clearance width | 370mm |
| Lateral support adjustment range | 0-6cm offset - 46-33cm trunk width 5cm vertical 25mm back/forwards ±5° Pad angle |
| Footplate adjustment | 410-520mm (standard footplates) 460-570mm (standard footplates with footrest extension) 200-300mm (N721 MFX footplates) 300-410mm (N722 MFX footplates) |
