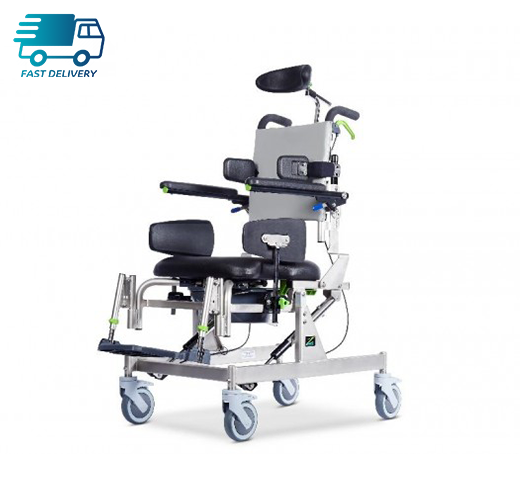

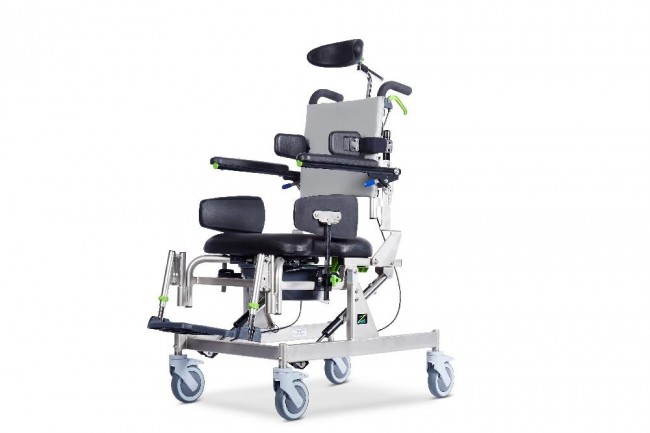

RAZ ATP Paediatric Shower Chair
Tilt-in-space stainless steel shower commode chair for small adults and paediatrics.
Product code : N0001P
Specification Build a quote
UK Coverage
Fast delivery
Longer warranties
Low maintenance products
Long usable lifetime
Live chat support
Key features
- Excellent adjustability, allowing the chair to 'grow' with the user, if required
- 5Yr Warranty
- Seat height adjustment
- Tension adjustable backrest - supports posture and provides lateral support
- Tilt-in-Space to 40° - excellent for pressure management and comfort
- Flip-up armrests for excellent access
- IPAS Seat System - adjust the seat depth to achieve optimum aperture positioning
The RAZ Attendant Tilt Paediatric (ATP) shower chair is based on our popular RAZ AT chair, which for years has been a market leading design in tilting shower chair. The ATP is multi-adjustable chair with a range of seat heights, seat depths, armrest heights and backrest angle adjustments as standard which allows movement within the frame to best suit the patient and the environment. The use of IPAS (Ischial pelvic alignment system), allows the aperture to be aligned with a user's pelvis and the contoured soft foam goes further in reducing pressure.
The ATP features a hydraulically adjustable chassis achieving up to 40° tilt and with an upgrade. The AdjustaBack offers tension-adjustment in the backrest to provide postural support to spinal curvatures and can offer a degree of lateral support.
There is a wide range of accessories available including a range of positioning aids like pelvic straps, ankle supports and chest harness.
Specification
| Max Patient Weight | 116kg |
| Overall Width | 570mm |
| Seat Height | 530/560/580/610/640mm |
| Seat Depth | 300-430mm |
| Seat adjustment | Up to 50mm back/forwards. 20mm laterally |
| Back height | 430mm (option) 500mm (standard) |
| Width between armrests pads | 390mm |
| Overall depth with footplates, upright | 890mm |
| Overall depth with footplates, in tilt | 1220mm |
| Tilt in Space range | 0-40° |
| Toilet bowl clearance Under Frame Under commode pan brackets |
450 / 470 / 500 / 530 / 550mm 420 / 440 / 470 / 500 / 520mm |
| Toilet bowl clearance width | 400mm |
| Lateral support adjustment range | 0-60mm offset - 280-180mm trunk width 50mm vertical 25mm back/forwards ±5° Pad angle |
| Footplate adjustment | 410-520mm (standard footplates) 460-570mm (standard footplates with footrest extension) 200-300mm (N721 MFX footplates) 300-410mm (N722 MFX footplates) |
