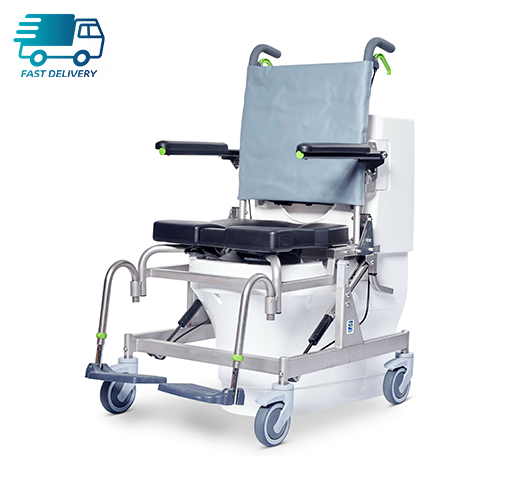

RAZ ATW GEB Shower Chair

The RAZ ATW is a tilt-in-space shower/toilet/commode chair, which has a wider chassis to make it compatible with Geberit and Closomat automatic toilets.

The RAZ ATW has the adjustability and specific features of the RAZ AT, promoting the long term usability of the chair to meet progressing and complex needs.

Order Code: N0052

UK Coverage
Fast delivery
Longer warranties
Low maintenance products
Long usable lifetime
Live chat support

Key features

  • Stainless steel chassis for durability
  • 5Yr Warranty
  • Height adjustable seat
  • Tension adjustable backrest - supports posture and provides lateral support
  • Tilt-in-Space to 40° - excellent for pressure management and comfort
  • Flip-up armrests for excellent access
  • IPAS Seat System - adjust the seat depth to achieve optimum aperture positioning
  • With a skirt to prevent water splashing

The RAZ ATW GEB has a 40°tilt to meet postural, pressure care, and comfort needs.

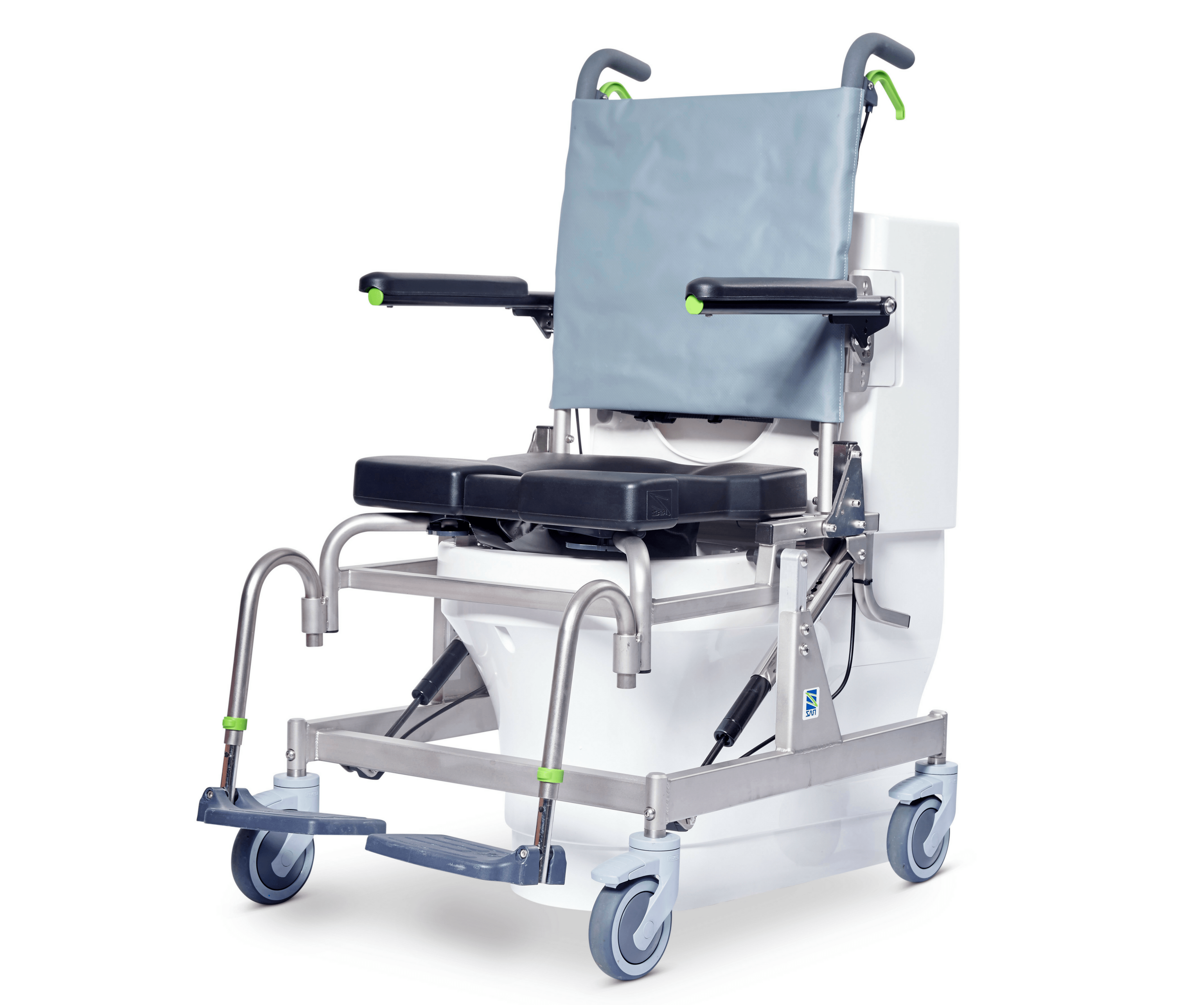

This model can be used in conjunction with Auto-WC models such as Geberit Aquaclean and Closomat Palma Vita in addition to use over virtually any standard toilet.

The ATW benefits from a wider chassis. Whilst it uses a standard seat module, the backrest is 50mm wider which can offer a broader client the extra space they need between the arms.

The unique frame design utilises lockable gas springs that help lift the seat to an upright position, making the ATW the easiest tilting rehab shower chairs to operate. The chassis width on this model is wider which enables the chair to be positioned over an automatic WC such as the Aquaclean or Closomat.

The impressive RAZ shower commode chair has multiple features, adjustments and accessories which means this shower chair will cover an extensive range of needs without having to find an alternative equipment solution at a later stage.

The RAZ ATW GEB has an adjustable tension fabric backrest which allows fine-tuning to meet postural and spinal changes. It has 125mm dual-locking castors, flip-up padded armrests, and injection moulded commode seat for comfort and positioning.

RAZ ATW GEB Shower/Toilet/Commode Chairs also offers the Ischial & Pelvic Alignment System (IPAS), which allows the commode seat aperture to be comfortably adjusted to meet a range of postural changes.

Specification

Max Patient Weight

157kg / 25 stone

Overall Width

605mm

Seat Height

530/560/580/610/640mm

Seat Depth

41cm / 48cm

Seat Width

450mm

Seat adjustment

Up to 50mm back/forwards. 20mm laterally

Back height

430mm (option)
500mm standard

Width between armrests pads

470mm

Overall depth with footplates, upright

980mm

Overall depth with footplates, in tilt

1300mm

Tilt in Space range

0-40°

Toilet bowl clearance
Under Frame
Under commode pan brackets

450 / 470 / 500 / 530 / 550mm
420 / 440 / 470 / 500 / 520mm

Toilet bowl clearance width

430mm

Lateral support adjustment range

0-60mm offset - 460-330mm trunk width
5cm vertical
25mm back/forwards
±5° Pad angle

Footplate adjustment

410-520mm (standard footplates)
460-570mm (standard footplates with footrest extension)
200-300mm (N721 MFX footplates)
300-410mm (N722 MFX footplates)
