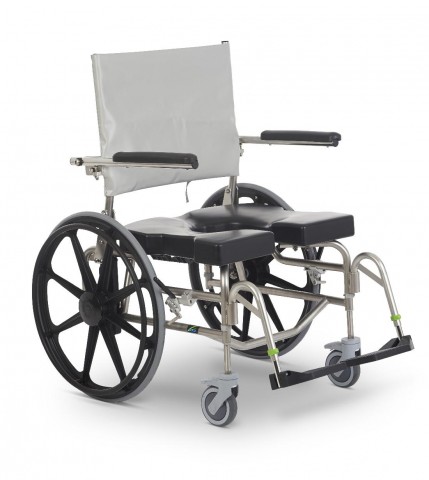

RAZ SP600 Bariatric Shower Chair
The RAZ SP600 is a self propel shower/toilet/commode chair for plus size/bariatric users.
Order Code: N0005
UK Coverage
Fast delivery
Longer warranties
Low maintenance products
Long usable lifetime
Live chat support
Key features
- Stainless steel frame & hardware
- 5Yr Warranty
- 275kg SWL
- Adjustable tension fabric backrest
- Adjustable frame height
- Flip-up armrests
- Dual-locking casters
The RAZ SP600 shower commode chair backrest offers tension adjustment and back recline alteration as standard. It has extensive frame height options and 600mm rear wheels for self propelling. The flip-up padded armrests assist with personal access, comfort and transfers. The stainless steel frame is engineered for heavy-duty use and has a centre of gravity feature within the rear wheel brackets for safety and usability.
RAZ SP600 chair also offers the Ischial & Pelvic Alignment System (IPAS), which allows the commode seat aperture to be comfortably adjusted to meet a range of postural changes.
Specification
| Safe working load | 272kg |
| Overall width | 770mm |
| Seat height | 490/510/540/600mm |
| Seat depth (front of back post to front of seat) |
480mm Custom seats are available upon request |
| Seat width | 560mm |
| Seat adjustment | Up to 50mm back / forwards. 25mm laterally |
| Back height | 520mm (standard) |
| Width between armrests pads | 500mm |
| Overall depth without footplates | 810mm |
| Overall depth with footplates | 1035mm |
|
Toilet bowl clearance |
Without pan brackets: 410 / 434 / 460 / 485 / 510mm With pan brackets: 390 / 414 / 439 / 464 / 490mm |
| Laterall support adjustment range |
0-76mm offset - 380mm trunk width 50mm vertical 25mm back/forwards ±5° Pad angle |
| Footplate adjustment |
410-520mm (standard footplates) 470-580mm (standard footplates with footrest extension) 305-420mm (N721 MFX footplates) |
