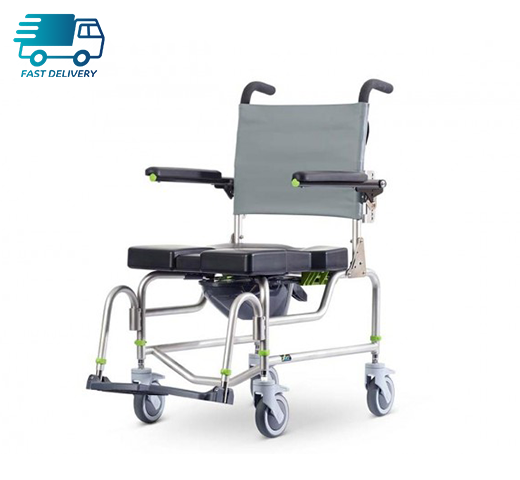

RAZ AP Shower Chair
Attendant Propelled Shower chair with a stainless steel height adjustable frame
Order Code: N0002B RAZ AP LOW Order Code: N0002LW
UK Coverage
Fast delivery
Longer warranties
Low maintenance products
Long usable lifetime
Live chat support
Key features
- Stainless steel frame
- 5Yr Warranty
- Adjustable tension backrest
- Adjustable frame height
- Flip-up armrests
- Four locking casters for stability
The RAZ attendant propel (RAZ AP) shower/toilet/commode chair is multi-adjustable with a range of seat heights, seat depths, armrest heights and backrest angle adjustments which are standard specification. This allows movement within the frame to best suit the user's needs and the environment. The design of IPAS (Ischial pelvic alignment system) within the seat, allows the commode seat aperture to be adjusted to meet a range of postural changes. As a standard, the chair comes with 100mm of height adjustment, 125mm dual-locking casters and flip-up padded armrests. The easy-to-clean, stainless steel frame is designed for easy side and front access by the user or attendant.
The AdjustaBack offers tension-adjustment in the backrest to provide postural support to spinal curvatures and can offer a degree of lateral support. The AP is also available with a wide chassis base which provides greater clearance for automatic WC’s such as the Geberit Mera. The wider version of the RAZ AP, the RAZ AP GEB has clearance for Closomat and older style Geberit auto WC's.
Also available in the RAZ AP LOW, which offers a lower seat height option.
Accessories for the RAZ AP include: lateral supports, several cushion configurations and elevating legrests. A wide range of accessories are available to further enhance specific support required in the RAZ AP including positioning belts/harnesses, ankle supports and much more...
Specification
|
Safe working load |
185kg |
|
Overall width |
570mm |
|
Seat height |
500/520/540/560/580/600mm |
|
Seat depth (front of back post to front of seat) |
450mm |
| Seat width |
450mm(standard) (plus 400mm/500mm/550mm/610mm by request) |
| Seat adjustment | Up to 50mm back/forwards. 20mm laterally |
| Back height | 420mm (standard) |
| Width between armrest pads | 470mm |
| Overall depth without footplates | 630mm |
| Overall depth with footplates | 870mm |
|
Toilet bowl clearance |
Without pan brackets: 450 / 470 / 500 / 530 / 550mm With pan brackets: 420 / 440 / 470 / 500 / 520mm |
| Lateral support adjustment range |
0-60mmoffset - 460-330mm trunk width 50mm vertical 25mm back/forwards ±5° Pad angle |
| Footplate adjustment |
410-520mm (standard footplates) 460-570mm (standard footplates with footrest extension) 200-300mm (N721MFX footplates) 300-410mm (N722MFX footplates) |
