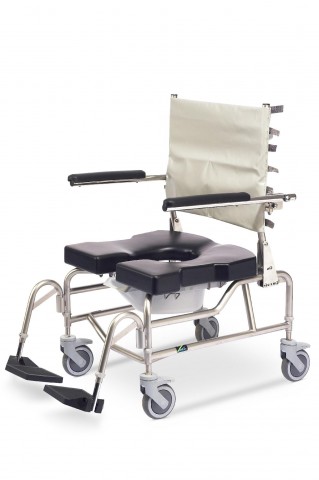

RAZ AP600 Bariatric Shower Chair
A heavy-duty attendant propelled hygiene shower chair for bariatric users up to 272kg.
The chairs tension adjustable backrest can be adjusted to accommodate changes in body contours i.e. a gluteal shelf. The seat allows easy access for users to manage their own personal hygiene.
RAZ shower/toilet/commode chairs also offer the Ischial & Pelvic Alignment System (IPAS), which allows the commode seat aperture to be comfortably adjusted to meet a range of postural changes.
Order Code: N0003
UK Coverage
Fast delivery
Longer warranties
Low maintenance products
Long usable lifetime
Live chat support
Key features
- Stainless steel frame
- 5Yr Warranty
- 272kg Weight Capacity
- Adjustable tension fabric backrest
- Adjustable frame height
- Flip-up armrests
- Dual-locking casters
- 590mm - 790mm (23"-31") seat width options
The RAZ AP600 is a heavy-duty Shower Commode chair featuring the height-adjustable stainless-steel frame. This chair is designed to be as flexible as possible- the flip armrest design allows easy access and accommodates additional hip with. The chair can be used in single-user or multi-user environments and is great for recycling due to its massively robust construction. This chair can be upgraded to have the self-propelling rear wheels if required in future. As with all the RAZ chair range, it comes with a 5Yr warranty.
As standard the AP600 chair comes in a 590mm seat width, which with it's generous width and open-arm design suits the majority. However you can now specify wider seat widths as standard, as follows: 610mm / 680mm / 710mm and 790mm.
Also available in a tilt-in-space version – the AT600, and self-propel version (SP600)- please contact us for a quotation.
Specification
|
Safe working load |
272kg |
|
Overall Width |
670mm (on standard 590mm seat width) |
|
Seat height |
480 / 505 / 530 / 555 / 580mm |
|
Seat width |
590mm (standard) / 610mm / 680mm / 710mm / 790mm |
| Seat adjustment | Up to 50mm back/forwards. 25mm laterally |
| Back height | 520mm (standard) |
| Width between armrest pads | 500mm |
| Overall depth without foorplates | 680mm |
| Overall depth with footplates | 930mm |
|
Toilet bowl clearance |
Without pan brackets: 410 / 434 / 460 / 485 / 510mm With pan brackets: 390 / 414 / 439 / 464 / 490mm |
| Toilet bowl clearance width | 407mm (standard) - Seat frame width minus 153mm |
| Lateral support adjustments range |
0-76mm offset -380mm trunk width 50mm vertical 25mm back / forwards ±5°Pad angle |
| Footplate adjustment |
410-520mm (standard footplates) 470-580mm (standard footplates with footrest extension) 305-420mm (N721 MFX footplates) |
