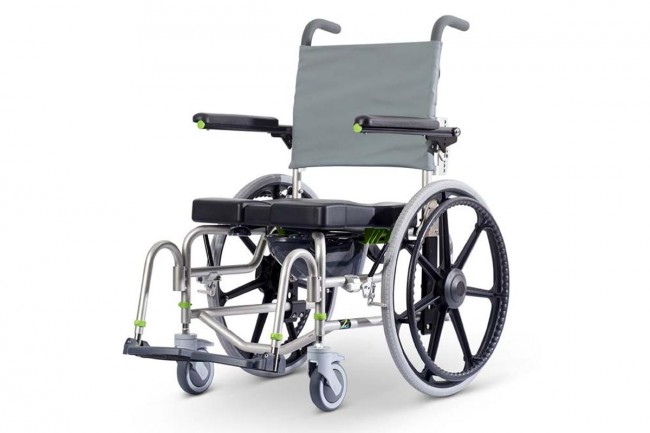

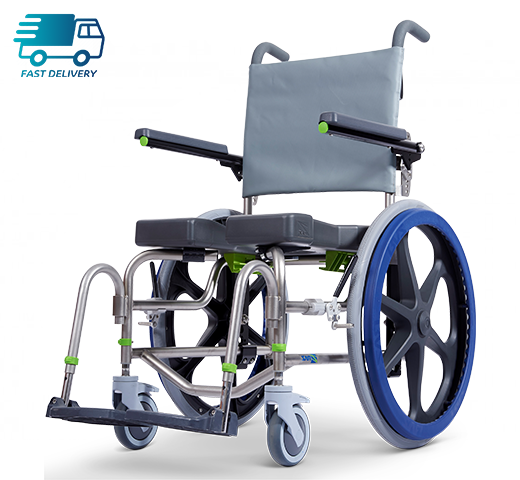

RAZ SP Shower Chair
The self propel (RAZ SP) shower chair is multi-adjustable with a range of seat heights, seat depths, armrest heights and backrest angle adjustments which are standard specification. This allows movement within the frame to best suit the user's needs and the environment. The design of IPAS (Ischial pelvic alignment system) within the seat, allows the commode seat aperture to be adjusted to meet the range of postural changes.
Order Code: N0004B
RAZ SP LOW Order Code: N0004LW
UK Coverage
Fast delivery
Longer warranties
Low maintenance products
Long usable lifetime
Live chat support
Key features
- Stainless steel chassis for durability
- Height adjustable seat
- Tension adjustable backrest - supports posture and provides lateral support
- Flip-up armrests for excellent access
- IPAS Seat System - adjust the seat depth to achieve optimum aperture positioning
- Side access frame as standard (for use with side opening seat module option)
The RAZ SP Rehab Shower Commode Chair comes standard with 100mm of height adjustment, an adjustable tension adjustable fabric backrest, 125mm dual-locking casters and flip-up padded armrests. The easy-to-clean, stainless steel frame is designed for easy side and front access by the user or attendant.
Also available in he RAZ SP LOW, offering a lower seat height option.
RAZ Rehab Shower Commode Chairs offer much more than you would expect, with comfort, seating, access, and adjustability a priority. The stainless steel frame design provides easy side/front access for users or caregivers.
All modules come standard with adjustable tension fabric backrest 125mm dual-locking casters, flip-up padded armrests, and a ultra-soft moulded commode seat for added comfort.
Specification
| Safe working load | 185kg |
| Overall width | 670mm (450mm seat width model) |
| Seat height | 500/520/540/560/580/600mm |
| Seat depth (front of back post to front of seat) | 410/480mm |
| Seat width |
450mm standard (plus 400mm/500mm/550mm/610mm by request) |
| Seat adjustment | Up to 50mm back/forwards. 20mm laterally |
| Back height | 430mm (option) / 500mm (standard) |
| Width between armrest pads | 470mm |
| Overall depth without footplates | 760mm |
| Overal depth with footplates | 1000mm |
| Toilet bowl clearance width | 370mm |
|
Toilet bowl clearance |
Without pan brackets: 450 / 470 / 500 / 530 / 550mm With pan brackets: 420 / 440 / 470 / 500 / 520mm |
| Lateral support adjustment range |
0-60mm offset - 460-330mm trunk width 50mm vertical 25mm back/forwards ±5° Pad angle |
| Footplate adjustment |
410-520mm (standard footplates) 460-570mm (standard footplates with footrest extension) 200-300mm (N721 MFX footplates) 300-410mm (N722 MFX footplates) |
Videos
