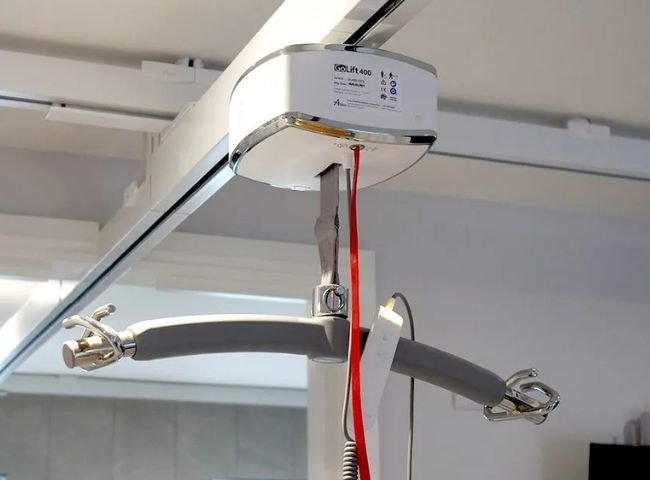

GoLift Ceiling Hoist

The GoLift is an ideal ceiling lift/hoist system designed to safely transfer an extensive range of patients.

Running on the low-profile GoTrack system, the GoLift is the most modern and advanced patient handling solution available.

Installed in private homes, DFG and modification projects, schools and care institutions across the UK.

Product Code:

  • GO-LIFT-400 (up to 28st)
  • GO-LIFT-450 (up to 32st)
  • GO-LIFT-700 (up to 50st)
  • GO-LIFT-B1000 (up to 72st)
Specification
UK Coverage
Fast delivery
Longer warranties
Low maintenance products
Long usable lifetime
Live chat support

Key features

  • Emergency Stop
  • Emergency Lowering Device
  • Upper Limit Detection
  • Lower Limit Detection
  • Slack Tape Sensor
  • Free Fall Brake (over speed governor)
  • Low Battery and Dead Battery Alarms
  • Soft Start and Stop
  • Overload Protection
  • Emergency Manual Lowering
  • Capacitive Hand Control
  • Tested to: ISO 10535-06, CE

For a market leading, aesthetically pleasing overhead hoist system, you need to look no further. The GoLift overhead hoist boasts excellent design features that will benefit users anywhere, whether in a private dwelling, changing places location, school or care home environment.

The GoLift, which has recently won a Bronze award (Healthcare Design 2017), combines compact design with easy maintenance and flexibility. An example of this is that the hoist can be specified with its own GoLift track, or retro fitted to other manufacturers track; this is a huge benefit if you are looking to upgrade your hoist units without having to carry out extensive work.

The slimline design means you get more lifting height, which is ideal in areas with limited ceiling heights.

When you look under the cover of the compact GoLift unit, you will find an impressive set of all metal gears and state-of-the-art battery technology that allow the caregiver to safely, and effortlessly, transfer a patient weighing up to 50st on a single lift. For larger patients, you may combine two compact GoLift 700 systems to obtain a lifting capacity of 72st.

An optional Power Traverse Unit can also be purchased, and is compatible with the GoLift 400 and 700 units. An innovative power system clips between the rail and the unit for powered traversing.Power for the unit is obtained from the hoist batteries, so a separate power cable is not needed. The handset is equipped with extra buttons for controlling left and right movements.

Here are some of the benefits of the GoLift

  • Smallest ceiling hoist on the market, giving additional lift height and aesthetically pleasing finish – and weighs as little as 4.8kg!
  • Four weight capacities – 28st, 32st, 50st and 72st (Tandem Lift)
  • Hygienic design

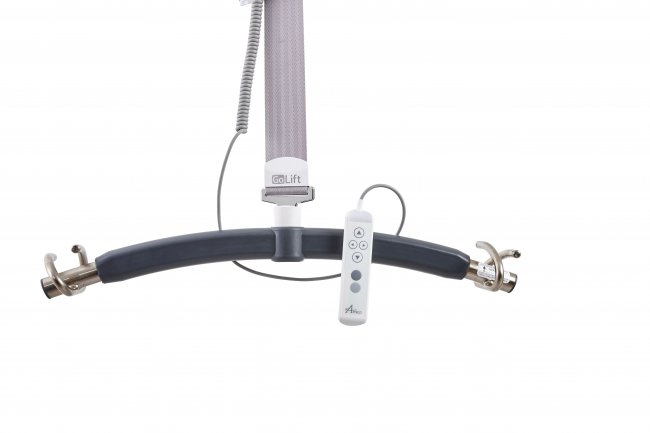

  • Capacitive touch handset – makes it much easier for users with limited use of their hands
  • Very easy maintenance – saving time and money
  • In track charging option
  • All metal gears, for longevity and reliability
  • Different track options, including bends, gate systems and three depths to allow longer spans.

  • GoLift track can also be recessed or inset into your ceilings – speak to an advisor for further details.

Scroll down to see the latest case studies with this exciting product.

To obtain a quotation or arrange an onsite assessment call our team on 0845 658 8411.

Specification

  GoLift 400 GoLift 450  GoLift 700 GoLift 1000
SWL (kg/st) 181 / 28.5 205 / 32 318 / 50 453 / 72
Dimensions (L x W x H, mm) 197 x 197 x 108 197 x197 x 108  197 x 197 x 108 394 x 197 x 108
Unit weight 3.5kg 5 kg 5kg 9kg (Tandem lift)
Strap Length 214cm 214cm 214cm 214cm



Lifts per Charge (Duty 10/90):

  • 375 with 84kg (185 lbs), (25% of strap at midrange)*
  • 170 with 181kg (400 lbs), (25% of strap at midrange)*
  • 102 with 317kg (700 lbs), (25% of strap at midrange)*
  • Charging time: 2-4 Hours
    *Calculated using 5Ah Packs
Max Lifting Speed:
  • No load: 2 inches (50.8 mm)/second
  • 68kg (150 lbs): 1.3 inches (33.02 mm)/second
  • 181kg (400 lbs): 1 inch (25.4 mm)/second
  • 318kg (700 lbs): 1 inch (25.4 mm)/second
  • 453kg (1000 lbs): 1 inch (25.4 mm)/second
Batteries:
  • High Capacity, Nickel Metal Hydride (Ni-Mh)
  • Standard: 2 x 14.4V (2Ah)
  • Optional: 2 x 14.4V (3.3 Ah) or (5 Ah)



Track Span Chart - in cm

Any track must have a minimum of 3 brackets

Lift SWL (kg) Regular Track Double Track Triple Track
181 234 378 665
317 152 269 480
453 112 236 421
